LS-2500

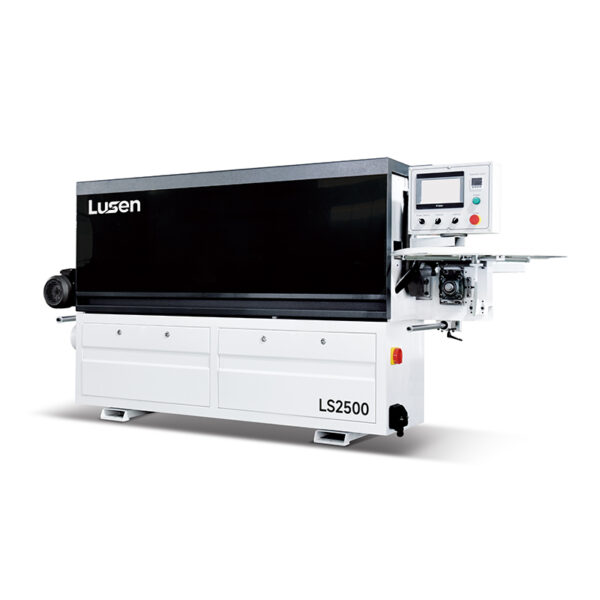

Description LS-2500 automatic edge banding machine is multi-function compact edge-banding equipment for cabinet and panel furniture production. It integrates gluing, end cutting, rough trimming, fine trimming, scraping and buffing functions. Feeding speed ranges 12-18m/min. Workpiece thickness supports 10-50mm; applicable edge-band tape thickness 0.4-3mm. Minimum workpiece length ≥120mm, minimum width ≥60mm. It is equipped with single EVA glue pot. Total power 7.8kW, working air pressure 0.6-0.8MPa, voltage 380V 50Hz and customizable. Overall dimension 2500×820×1420mm, net weight 820kg with CE certification. This machine finishes full-procedure straight edge banding for MDF, particle board and plywood panels. Compact dimension suits small-and-medium furniture workshops and cabinet factories.
Main Features
- Integrate gluing, end cutting, trimming, scraping, buffing all-in-one
- Feeding speed 12-18m/min for stable continuous production
- Single EVA glue pot for hot-melt edge-band processing
- Adapt edge tape thickness 0.4-3mm for PVC, melamine edge band
- Process workpiece thickness 10-50mm for cabinet panels
- Compact body with small workshop footprint
- CE certification for overseas market
- Cost-effective for small-medium cabinet furniture manufacturing
| Parameter | Specification |
| Model | LS-2500 |
| Processing functions | Gluing, End cutting, Rough trimming, Fine trimming, Scraping, Buffing |
| Feeding speed | 12-18m/min |
| Workpiece thickness | 10-50mm |
| Edge band tape thickness | 0.4-3mm |
| Min workpiece length | ≥120mm |
| Min workpiece width | ≥60mm |
| Glue pot | Single EVA glue pot |
| Total power | 7.8kW |
| Working air pressure | 0.6-0.8MPa |
| Voltage | 380V 50Hz (customizable) |
| Overall dimension | 2500×820×1420mm |
| Net weight | 820kg |
| Certification | CE |
