Model: MH3248X50T

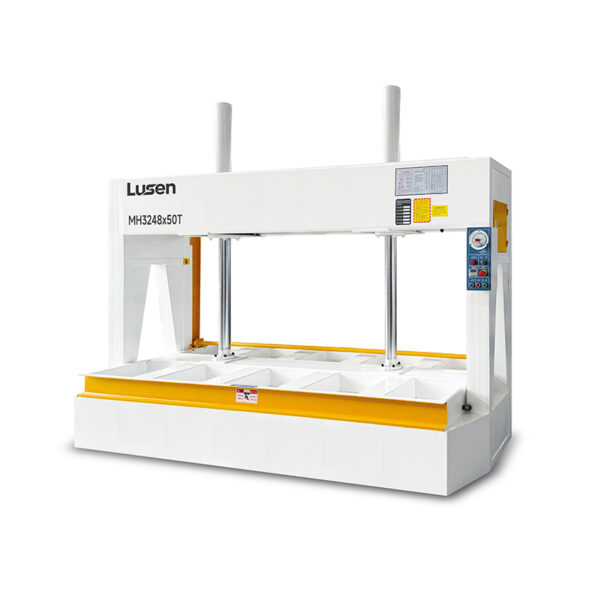

Description MH3248X50T hydraulic cold press machine is economical woodworking pressing machinery for veneer sticking and panel compounding. It offers maximum 50-ton pressing force with two oil cylinders, working platen dimension 1250×2500mm, perfectly matching standard furniture panels and cabinet boards. Users can select optional 1300mm platen opening to handle thicker workpieces. The 4kW hydraulic motor supports stable working pressure at 210kg/cm², guaranteeing reliable bonding performance for plywood, MDF and solid-wood components. Its solid welded frame greatly reduces deformation under long-time pressure. Net weight is 2000kg, one unit loads in 20GP container, two units for 40GP. This cost-effective cold press fits furniture workshops, door manufacturing factories and small wood processing enterprises, performing well in cold gluing procedure and greatly improving finished-panel flatness.
Main Features
- Cost-effective 50T pressing capacity for general panel production
- Stable dual-cylinder hydraulic driving system
- Optional large platen opening for thick workpieces
- Robust welded steel frame against pressure deformation
- Low power consumption, energy-saving for daily mass production
- User-friendly control, easy installation and commissioning
- Compact dimension for workshop layout and sea shipment
| Parameter | Specification |
| Model | MH3248X50T |
| Working platen size | 1250×2500mm |
| Max total thrust | 50T (1.6kg/cm²) |
| Hydraulic system pressure | 210kg/cm² |
| Max platen opening | 1000mm (1300mm optional) |
| Number of oil cylinders | 2pcs |
| Oil cylinder diameter | Φ125/90mm |
| Hydraulic motor power | 4kW |
| Overall size | 1250×3000×2200mm |
| Net weight | 2000kg |
| 20’GP loading | 1 set |
| 40’GP loading | 2 sets |
