Feature:
Imported planer roll, will be thick roll and soft roll (or a combination of sand frame), and then after the first plane sand polishing process, energy efficient.
With floating pressure boots, short sand material available.
Casting stop device is used to avoid rebounding and hurting the plate during processing.
Conveyor belt drive adopts variable-frequency helical gear worm reducer, more stable and reliable.

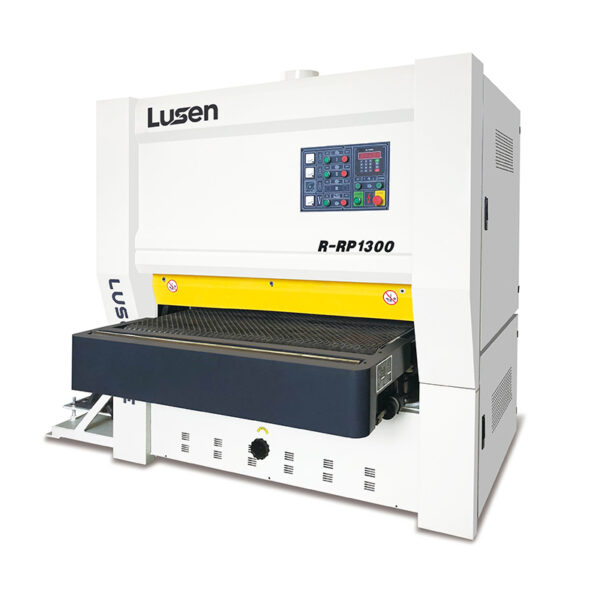

Achieving high-efficiency material removal and premium surface preparation is essential for industrial woodworking operations. This advanced planer and sanding machine is engineered with robust technical features and a durable structure to deliver exceptional performance, energy efficiency, and operational safety.
Main Specification:
| Working width | 40-1300 mm |
| Working thickness | 3-100 mm |
| Min. Working length | 538 mm |
| Feeding speed | 6-30 m/min |
| Size of sanding belt | 1330*2200 mm |
| Total power | 77.12 kw (22kw,30kw,18.5kw) |
| Air pressure | 0.55 Mpa |
| Consumption of air | 0.1 m3/min |
| Vulume of sucked air | 12000 m3/h |
| Speed of sucked air | 25-30 m/s |
| Overall dimension | 3090*2020*2260 mm |
| Net weight | 4700 kg |
