Feature:
Imported planer roll, will be thick roll and soft roll (or a combination of sand frame), and then after the first plane sand polishing process, energy efficient.
With floating pressure boots, short sand material available.
Casting stop device is used to avoid rebounding and hurting the plate during processing.
Conveyor belt drive adopts variable-frequency helical gear worm reducer, more stable and reliable.

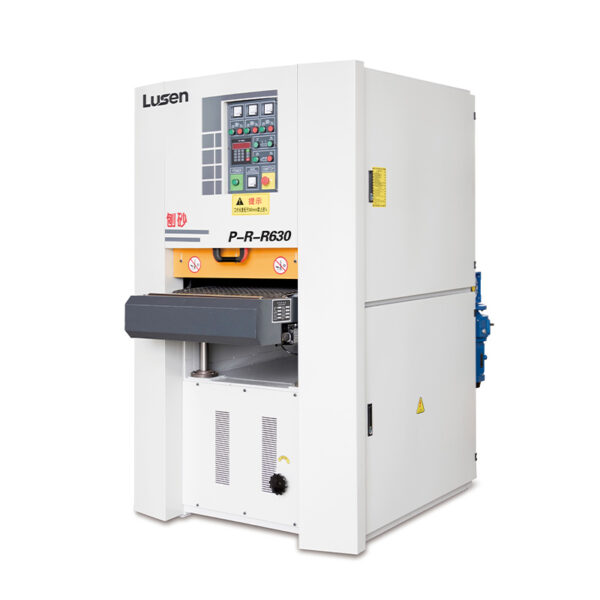

Achieving exceptional surface preparation and high-efficiency material removal is critical for modern woodworking and panel-processing facilities. The P-R-R630 planer and sanding machine is engineered with advanced technical features and a robust structural design to deliver superior performance, energy efficiency, and operational safety.
Main Specification:
| P-R-R630 | Max working width | 630mm |
| The shortest length of process | 500mm | |
| Maximum processing thickness | 200mm | |
| Conveyor speed | 6-30m/min | |
| Total power | 31.37kw | |
| First frame motor power | 11kw | |
| Second sand frame motor power | 11kw | |
| Third sand shelf motor power | 7.5kw | |
| Conveyor motor wattage | 1.5kw | |
| Lifting motor power | 0.37kw | |
| The first frame steel roller diameter | 127mm | |
| Second sander roller diameter | 190mm | |
| Third sander roller diameter | 190mm | |
| Abrasive belt size | 650*1920mm | |
| Working pressure | 0.6Mpa | |
| The amount of dust | 8000m³/h | |
| Size | 2000*2400*2200mm | |
| Weight | 2500kg |
