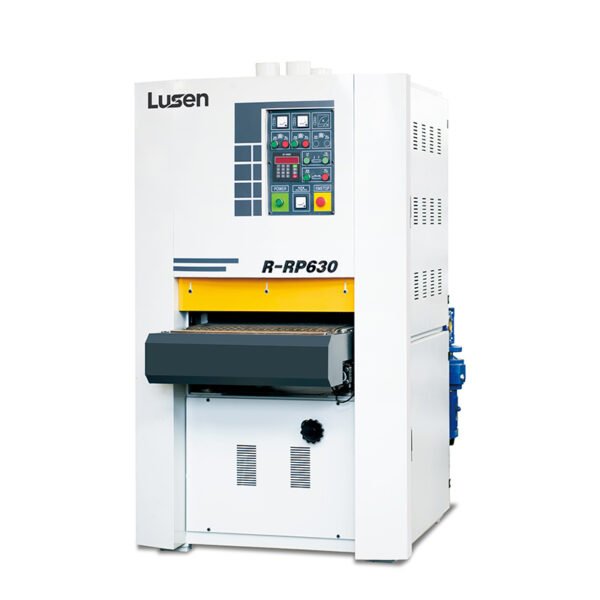

R-RP630
Description R-RP630 double-head thickness sanding machine is compact sanding equipment for narrow wood panels, small furniture components. Max working width 630mm, minimum processing length 500mm, processing thickness 3-110mm. Conveyor speed adjustable 6-30m/min. Total installed power 20.37kW; 11kW and 7.5kW for two sanding frames. Sanding roller diameter Φ190mm, abrasive-belt dimension 650×1920mm. Working pressure 0.6MPa, dust-extraction air volume 8000m³/h. Overall dimension 1900×1200×2100mm, net weight 1200kg. Small footprint suits limited-space workshop. It can process narrow solid-wood strips, small cabinet parts and short panels, finish rough and fine sanding within one pass, stable sanding precision with low energy consumption for small wood workshops.
Main Features
- Compact 630mm working width for narrow wood parts
- Double-head sanding structure for rough & fine finishing
- Wide thickness range 3-110mm for diverse small workpieces
- Adjustable conveyor feeding speed
- Good dust-removal performance
- Small overall size, occupy little workshop area
- Low power consumption, ideal for small-batch production
| Parameter | Specification |
| Model | R-RP630 |
| Max working width | 630mm |
| Shortest length of process | 500mm |
| Processing thickness | 3-110mm |
| Conveyor speed | 6-30m/min |
| Total power | 20.37kW |
| 1st frame motor power | 11kW |
| 2nd sand frame motor power | 7.5kW |
| Conveyor motor wattage | 1.5kW |
| Lifting motor power | 0.37kW |
| 1st frame steel roller diameter | 190mm |
| 2nd sander roller diameter | 190mm |
| Abrasive belt size | 650×1920mm |
| Working pressure | 0.6MPa |
| Dust extraction amount | 8000m³/h |
| Overall size | 1900×1200×2100mm |
| Net weight | 1200kg |
