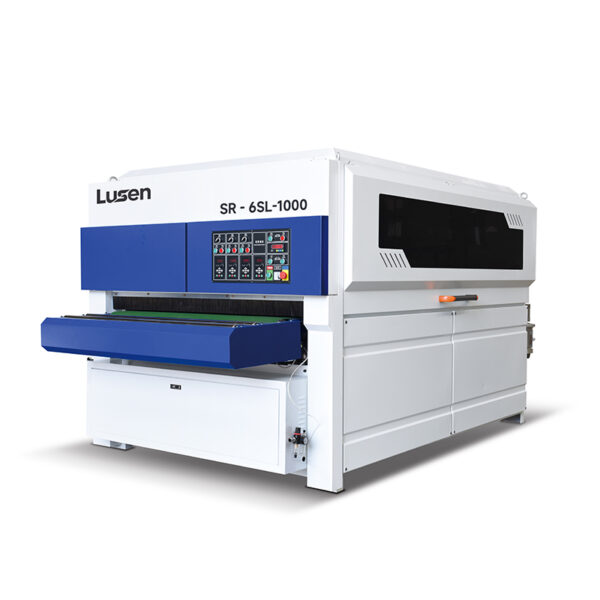

SR-6SL-1000
Description
The SR-6SL-1000 is advanced industrial polishing machines specifically designed for heavy-duty finishing in woodworking and metalworking industries. These machines are perfect for polishing large surfaces with precision and efficiency. These industrial polishing machines ensure a smooth, professional finish on wood, metal, or composites with advanced technology.
Ideal for factories, workshops, and production lines, the SR-6SL series excels at handling demanding tasks, providing high-quality polishing results for various industrial applications.
Main Features
- 1000mm maximum working width for furniture panels and doors
- 6 polishing units: horizontal rollers, disc brush & screw rollers
- Multi-direction composite polishing for complex workpiece surface
- Adjustable conveyor speed for different polishing requirements
- Six dust-extraction ports for efficient dust collection
- Complete CE certification for overseas market
- Realize high-grade matte or glossy furniture surface
- Stable mechanical structure for long-time continuous work
| Parameter | SR-6SL-1000 |
| Model | SR-6SL-1000 |
| Max working width | 1000mm |
| Min. working length | 400mm |
| Maximum processing thickness | 100mm |
| Reducer motor power | 1.1kw |
| Total power | 10.44kw |
| Horizontal roller motor power | 2×1.5kw |
| Disc brush motor power | 1.5kw |
| Screw roller motor power | 2×1.5kw |
| Lifting motor power of horizontal roller | 0.55kw |
| Lifting motor power of disc brush | 0.37kw |
| Lifting motor power of screw roller | 0.55kw |
| Lifting motor power of transport bed | 0.37kw |
| Conveyor speed | 6-30m/min |
| Conveyor belt size | 5970×1000mm |
| Screw roller diameter | 300mm |
| Dust collection hood | 6×100mm |
| Overall dimension | 3950×1750×1900mm |
| Horizontal plate diameter | 260mm |
| Horizontal plate number | 7pcs |
| Screw roller number | 2pcs |
| Brush plate number | 9pcs |
| Brush plate diameter | 180mm |
