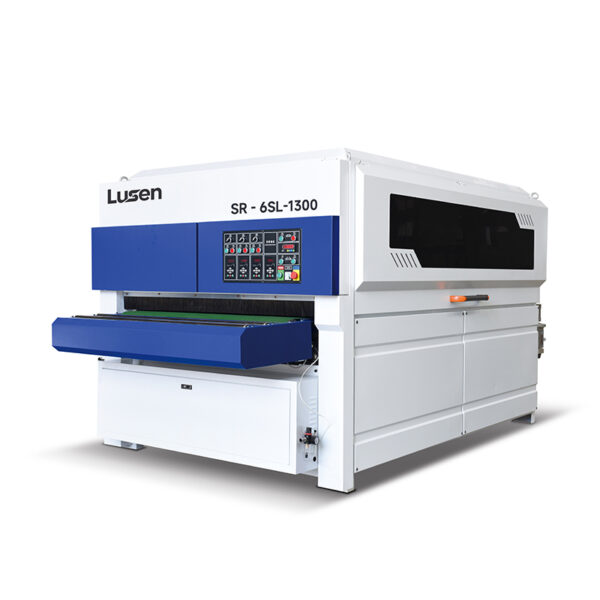

SR-6SL-1300
Description SR-6SL-1300 brush polishing sanding machine is heavy-duty multi-roller polishing equipment for large-size wooden doors and wide furniture panels. Multi-group brushes conduct omni-direction polishing on solid-wood or painted surface, eliminate burr, paint grain and tool mark. Ideal for wooden-door factories and large furniture manufacturers for high-end surface finishing.
Main Features
- 1300mm large working width for wide door & furniture panels
- 6 polishing modules for multi-angle composite surface finishing
- Horizontal roller, disc brush and screw roller combined structure
- Adjustable conveyor speed for flexible polishing quality
- Six dust ports for full-range dust suction
- CE certification to meet international market standard
- Perfect for solid-wood and painted furniture high-grade polishing
- Heavy-duty body for stable mass-production performance
| · Parameter | · SR-6SL-1300 |
| · Model | · SR-6SL-1300 |
| · Max working width | · 1300mm |
| · Min. working length | · 400mm |
| · Maximum processing thickness | · 100mm |
| · Reducer motor power | · 1.5kw |
| · Total power | · 10.79kw |
| · Horizontal roller motor power | · 2×1.5kw |
| · Disc brush motor power | · 1.5kw |
| · Screw roller motor power | · 2×1.5kw |
| · Lifting motor power of horizontal roller | · 0.55kw |
| · Lifting motor power of disc brush | · 0.37kw |
| · Lifting motor power of screw roller | · 0.55kw |
| · Lifting motor power of transport bed | · 0.37kw |
| · Conveyor speed | · 6-30m/min |
| · Conveyor belt size | · 5970×1300mm |
| · Screw roller diameter | · 300mm |
| · Dust collection hood | · 6×100mm |
| · Overall dimension | · 3400×2050×1900mm |
| · Horizontal plate diameter | · 260mm |
| · Horizontal plate number | · 7pcs |
| · Screw roller number | · 2pcs |
| · Brush plate number | · 11pcs |
| · Brush plate diameter | · 180mm |
